MicroPython on the S1 Module

v1.18-387

MicroPython on the S1 lets you quickly prototype and test your algorithms without having to get deep into C development. You can easily test FPGA binaries, read or write data, and control all module features over the air.

No programmer needed

MicroPython also functions as an excellent network stack. Allowing you to interface to a mobile app, or Bluetooth gateway, using simple strings.

from machine import RTC
from machine import FPGA

FPGA.run() # Boot the FPGA application
processedData = bytearray(100) # Data from the FPGA will be stored here

while True:
    FPGA.read(processData) # Read 100 bytes over SPI
    processedData # Print out the data
    RTC.sleep_ms(1000) # Repeat again every second

Installing MicroPython on the S1 Module
First steps
Library Reference
Improvements

Installing MicroPython on the S1 Module

MicroPython works great on all of our S1 products.

Download the latest .hex release from here 📁
You’ll need a J-Link compatible programmer and the J-Link software installed
Make sure you have the nRF command line tools installed

Flash the binary using the command

 nrfjprog --program micropython-s1-*.hex --chiperase -f nrf52 --verify -r

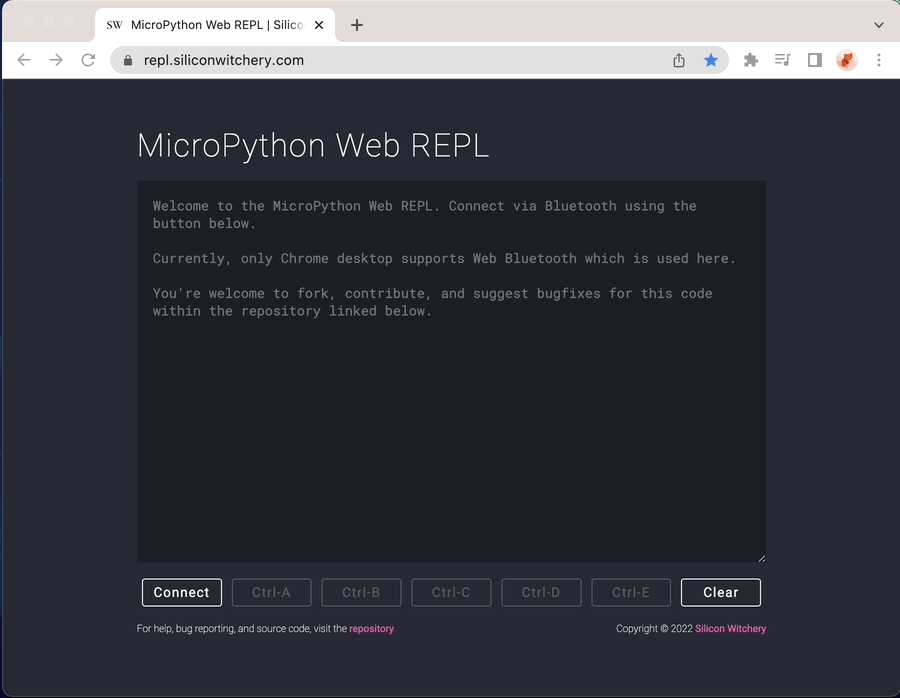

Access MicroPython wirelessly using our Web REPL

First steps

Click Connect and you’ll see your S1 device appear. Select it and click Pair
Press Ctrl-B to enter the friendly REPL mode
All of the S1 related functions are located inside the machine module. Import it using the command
```
 import machine
```
To see what’s contained inside machine, you can use the help() function
```
 help(machine)
```
You can import any class contained within machine, and use them directly without having to specify machine before the class name
```
 from machine import Pin

 myPin = Pin(Pin.PIN_A1, pull=Pin.PULL_DOWN)
 myPin() # Reads the pin value
```
You can also call help on these inner classes to see the functions contained within
```
 from machine import Pin
 help(Pin)
```

Library Reference

The hardware specific libraries for the S1 are described below. Each library must be imported before use like so:

from machine import ADC
from machine import FPGA
...

To list what functions and definitions a library contains, the help() command can be used after importing:

from machine import ADC

help(ADC)

`machine` – S1 module hardware library

This class contains everything required to control the S1 Module.

Classes

machine.Pin

Functions related to the nRF GPIO pins. See more info about the Pin class

machine.ADC

Functions related to the nRF ADC. See more info about the ADC class

machine.RTC

Functions related to the real time clock and time functions. See more info about the RTC class

machine.FPGA

Functions related to the iCE40 FPGA. See more info about the FPGA class

machine.Flash

Functions related to the 32 Mbit flash memory. See more info about the Flash class

machine.PMIC

Functions related to S1 power and battery management IC. See more info about the PMIC class

Functions

machine.mac_address()

Returns the 48bit MAC address as a 12 character hex string

machine.reset()

Resets the nRF52. Both MicroPython and the Bluetooth connection will be reset. Note that the PMIC configuration remains unchanged

machine.reset_cause()

Displays one of the following causes for the last reset. After calling this function, the reset cause is atomatically cleared to RESET_CAUSE_NONE

`RESET_CAUSE_NONE`	No resets since power on, or the reset cause has already been read
`RESET_CAUSE_SOFT`	Last reset via `machine.reset()`
`RESET_CAUSE_LOCKUP`	System was reset from a CPU lockup or crash
`RESET_CAUSE_GPIO_WAKE`	System woken up from deep sleep by a `Pin` interrupt

machine.power_down()

Puts the device into the lowest power deep sleep. Can only be woken up using a Pin interrupt, or power cycle
Once woken up, the device will be reset. machine.reset_cause() will show the cause RESET_CAUSE_GPIO_WAKE

Note: To ensure the lowest power consumption, follow the sequence below to ensure all other devices are powered down before going to sleep

  FPGA.reset() # Stop the FPGA
  Flash.sleep() # Place the flash into deep sleep
  PMIC.battery_level(False) # Disable battery monitoring
  PMIC.fpga_power(False) # Shutdown FPGA power
  PMIC.vaux_config(0) # Turn off the Vaux buck-boost convertor

  # Remember to set up a Pin.irq if pin based wake is required

  machine.power_down()

Constants

machine.version

Displays the current MicroPython version as a tuple

machine.git_tag

Displays the Git tag of the current MicroPython build as a string

machine.build_date

Displays the build date of the current MicroPython build as a string

machine.board_name

Returns the board name as a string. Always s1 module

machine.mcu_name

Returns the MCU name as a string. always nrf52811

`machine.Pin` – General purpose digital IO

This class contains all of the functions to control the nRF52 GPIO.

Constructor

class machine.Pin(pin, mode=IN, pull=PULL_DISABLED, drive=S0S1)

The S1 Module breaks out two nRF52 GPIO pins. PIN_A1 and PIN_A2. These can be configured as inputs, outputs, interrupts, or ADC inputs (see the ADC class for more info about how to use the pins as ADC inputs)

To initialize a pin, call the Pin constructor

  myPin = Pin(Pin.PIN_A1, mode=Pin.OUT, pull=Pin.PULL_DISABLED, drive=Pin.S0H1)

To view the current configuration, you can simply print the object

  myPin
  # Will print out the configuration for myPin
  Pin(Pin.PIN_A1, mode=OUT, pull=PULL_DISABLED)

Various options can be provided when setting up the pin

mode
`IN`	Pin will be an input. Default
`OUT`	Pin will be an output

pull
`PULL_DISABLED`	Internal pull resistor will be disabled. Default
`PULL_UP`	Pin will be pulled up
`PULL_DOWN`	Pin will be pulled down

drive	Drive strength only applicable in output mode
S0S1	Standard 0, standard 1. Default
H0S1	High drive 0, standard 1
S0H1	Standard 0, high drive 1
H0H1	High drive 0, high drive 1
D0S1	Disconnect 0, standard drive 1
D0H1	Disconenct 0, high drive 1
S0D1	Standard 0, disconnect 1
H0D1	High drive 0, disconnect 1

Functions

Pin(outputValue)

Gets or sets the pin value depending on the mode that is configured

  myPin() # Reads the value on the pin
  myPin(True) # Sets the value of the pin if in output mode

Pin.irq(callback, trigger=IRQ_TOGGLE)

Sets up an interrupt for a pin that’s configured as an input. When a trigger is detected, MicroPython will run the callback provided

  # First set up a callback
  def myCallback():
      print("Do stuff")

  # Set up a pin as an input
  myPin = Pin(Pin.PIN_A1, mode=Pin.IN, pull=Pin.PULL_DOWN)

  # Set up the interrupt
  myPin.irq(myCallback, toggle=Pin.IRQ_RISING)

One of three trigger modes can be selected when configuring an interrupt
trigger
IRQ_TOGGLE Interrupt will detect both rising and falling edges. Default
IRQ_RISING Interrupt will only detect rising edges
IRQ_FALLING Interrupt will only detect falling edges

trigger
`IRQ_TOGGLE`	Interrupt will detect both rising and falling edges. Default
`IRQ_RISING`	Interrupt will only detect rising edges
`IRQ_FALLING`	Interrupt will only detect falling edges

Pin.irq_disable()

Disables any interrupt set up for that pin

  myPin.irq_disable()

  ## myCallback will no longer trigger on a rising edge of PIN_A1

`machine.ADC` – Analog to digital convertor

This class contains all of the functions to control the nRF52 ADC.

Constructor

class machine.ADC(channel, pPin, res=14[bit], samp=32, pRes=PULL_DISABLED, nRes=PULL_DISABLED, gain=GAIN_DIV6, ref=REF_INTERNAL, acq=10[us], mode=MODE_SINGLE)

The S1 module breaks out two nRF GPIO pins. PIN_A1 and PIN_A2. Both of these pins can be used as ADC inputs, either as two single ended inputs, or a differential pair

To initialize an ADC input pin, call the ADC constructor

  myPin = ADC(0, ADC.PIN_A1) # Channel 0, and pin A1

The channel can be from 0 - 6. Different channels can be set using the same pin for different configurations. To fully understand the ADC features and limitations, have a look at the SAADC section of the nRF52811 datasheet

To view the current configuration, you can simply print the object

  myPin
  # Prints out the configuration for myPin
  ADC(ch=0, pPin=PIN_A1, res=14[bit], samp=32, pRes=PULL_DISABLED, nRes=PULL_DISABLED, gain=GAIN_DIV6, ref=REF_INTERNAL, acq=10[us], mode=MODE_SINGLE)

Various options can be provided when setting up the ADC pin

res
`14`	Uses a 14 bit ADC resolution. Default
`12`	Uses a 12 bit ADC resolution
`10`	Uses a 10 bit ADC resolution
`8`	Uses an 8 bit ADC resolution

samp
`1`	No oversampling
`2`	Use 2x oversampling
`4`	Use 4x oversampling
`8`	Use 8x oversampling
`16`	Use 16x oversampling
`32`	Use 32x oversampling. Default
`64`	Use 64x oversampling
`128`	Use 128x oversampling
`256`	Use 256x oversampling

pRes/nRes	Note: nRes is only applicable in differential mode
`PULL_DISABLED`	Internal pull resistor is disabled. Default
`PULL_UP`	Pin will be pulled up
`PUUL_DOWN`	Pin will be pulled down
`PULL_HALF`	Pin will be pulled to half the VDD of the nRF (1.8V/2)

gain
`GAIN_DIV6`	Set the ADC gain to 1/6. Default
`GAIN_DIV5`	Set the ADC gain to 1/5
`GAIN_DIV4`	Set the ADC gain to 1/4
`GAIN_DIV3`	Set the ADC gain to 1/3
`GAIN_DIV2`	Set the ADC gain to 1/2
`GAIN_UNITY`	Set the ADC gain to 1
`GAIN_MUL2`	Set the ADC gain to 2
`GAIN_MUL4`	Set the ADC gain to 3

ref
`REF_INTERNAL`	Use the internal 0.6V reference. Default
`REF_QUARTER_VDD`	Use a 1/4 VDD reference ~1.8V/4

acq
`3`	Use an acquisition time of 3us
`5`	Use an acquisition time of 5us
`10`	Use an acquisition time of 10us. Default
`15`	Use an acquisition time of 15us
`20`	Use an acquisition time of 20us
`40`	Use an acquisition time of 40us

mode
`MODE_SINGLE`	Use the pin as a single ended input. Default
`MODE_DIFF`	Enable differential input. The other pin will be automatically selected as the negative input

Functions

ADC()

Gets the raw integer register value of the ADC channel
```
  myPin()
  # Returns the raw value
  399
```

ADC.voltage()

Gets the ADC value and returns the voltage as a float based on the channel settings
```
  myPin.voltage()
  # Returns the voltage as a float
  0.1010742
```

ADC.calibrate()

Internally calibrates the ADC for more accurate readings. Can be called after power on, or periodically if the module will be subject to large temperature changes

`machine.RTC` – Real time clock

This class contains all of the functions to control the nRF52 RTC and timing functions.

Functions

RTC.time(setTime)

If RTC.time() is called without an argument, it will return the time in seconds since power on, or the last reset
```
  RTC.time()
  4699 # Around 1.3 hours
```
If a value is provided, the internal time is adjusted, and following reads will return the time from then on. Note Due to the 30 bit limitation of MicroPython integers, standard epoch time cannot be used. Instead, use a different reference, such as seconds since 1st Jan 2000
```
  RTC.time(705580080) # Set date and time to May 11th 2022, 11:28:00 AM

  # 5 minutes later
  RTC.time()
  705580380
```

RTC.sleep_ms(ms)

Puts the nRF into a light sleep for a number of milliseconds provided. The device will remain connected, but won’t respond until the time is up. This can be used to create simple delays in loops

`machine.FPGA` – FPGA controller

This class contains all of the functions to control the iCE40 FPGA.

Functions

FPGA.run()

Brings the FPGA out of reset, and loads any binary stored in the flash

  PMIC.fpga_power(True) # Ensure the FPGA is powered on, in case you disabled it before
  FPGA.run()

Ensure a valid FPGA binary is stored within the flash, otherwise the FPGA won’t configure

FPGA.reset()

Resets the FPGA

FPGA.status()

Gets the current status of the FPGA. Will return one of the following strings
FPGA_RESET The FPGA is currently held in reset
FPGA_CONFIGURING The FPGA is configuring and loading the binary from the flash
FPGA_RUNNING The FPGA is running

FPGA.irq()

Once the FPGA is configured and running, the CDONE pin which tells us the state of the FPGA, can now be used as a user interrupt

Similar to Pin.irq() it can be configured to execute a callback whenever the CDONE pin goes low (always a falling edge)

  # First set up a callback
  def myCallback():
      print("Do stuff")

  FPGA.run()
  FPGA.irq(myCallback)

FPGA.irq_disable()

Disables the FPGA interrupt

FPGA.read(rxbuffer)

Reads data from the FPGA over the internal SPI bus

  rx = bytearray(10) # Create a 10 byte buffer to read into
  FPGA.read(rx) # Reads 10 bytes over the SPI bus

  # The buffer can be printed, showing what was received
  rx
  # Will print out
  bytearray(b'\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00')

FPGA.write(txBuffer)

Writes data to the FPGA over the internal SPI bus

  tx = [1, 2, 3, 4, 5] # Create an array of 5 bytes to send
  tx = "\x01\x02\x03\x04\x05" # The buffer can also be created as a string

  FPGA.write(tx) # Sends the 5 bytes from the tx buffer

FPGA.read_write(rxBuffer, txBuffer)

Simultaneously reads and writes data

  # rx and tx are the same as before
  FPGA.read_write(rx, tx) # Read 10 bytes, and write 5 bytes

`machine.Flash` – Flash memory

This class contains all of the functions to read and write to the flash IC.

Functions

Flash.sleep()

Puts the flash IC into deep sleep for saving power
The flash IC will automatically be woken up if any of the flash operations below are called

Flash.erase(blockNum)

Erases a 4kB block from the flash IC

  Flash.erase(0) # Erase block 0
  Flash.erase(5) # Erase block 5

If no block number is given, the chip is fully erased. This can take a while
```
  Flash.erase() # Full chip erase can take up to 80 seconds
```

Flash.read(pageNum, rxBuffer)

Reads the flash from the page number provided. Each page is 256 bytes long, therefore up to 256 bytes can be read at a time

  rx = bytearray(256)
  Flash.read(0, rx) # Read 256 bytes from page 0

  # Shorter amounts can also be read using a smaller buffer
  rx = bytearray(10)
  Flash.read(4, rx) # Read 10 bytes from page 4

Flash.write(pageNum, txBuffer)

Writes to the flash at the page number provided. Each page is 256 bytes long, therefore up to 256 bytes can be written at a time

  tx = bytearray(256)

  for i in range(256):
      tx[i] = i # Populate some test data

  Flash.write(0, tx) # Write 256 bytes to page 0

  # Again, smaller amounts can also be written

`machine.PMIC` – Power management

This class contains all of the functions to configure the S1 voltage rails, and configure the battery charger.

Functions

PMIC.charge_config(v, i)

Configures the battery charger. If no arguments are given, the current setting is printed as a tuple
If voltage, and/or current arguments are provided, the values will be set accordingly
Voltage v can be set between 3.6V and 4.3V (in 50mV steps)

Current i can be set between 7.5mA and 300mA (in 7.5mA steps). Note Value should be written as a float in mA, not A

  PMIC.charge_config(v=4.21, i=100)

  PMIC.charge_config() # Read the set parameters
  # Note the difference due to the resolution that can be set
  (4.2, 97.5)

PMIC.battery_level(enable)

Displays the current battery voltage as a float

Before reading the value, the voltage monitoring must be enabled

  PMIC.battery_level(True) # Enable monitoring
  PMIC.battery_level() # Read the battery level
  3.46

  PMIC.battery_level(False) # The monitoring can be disabled to save a small amount of power if not needed

PMIC.fpga_power(enable)

Enables or disables the FPGA core power rail

Setting this to False will automatically disable the Vio rail to avoid damaging the FPGA. Vio will need to be reconfigured manually after reenabling the FPGA core power rail

  PMIC.fpga_power() # Read the current state of the rail
  True

  PMIC.fpga_power(False) # Shuts down the FPGA core power rail

  PMIC.vio_config() # Read the Vio rail value
  # Will be set to 0V whenever the FPGA is shut down
  0

  PMIC.fpga_power(True) # Power on the FPGA again
  PMIC.vio_config(1.8) # You'll need to set the Vio rail again

PMIC.vaux_config(voltage)

Configures the buck-boost convertor of the Vaux rail
If no arguments are given, the current setting will be printed as a float

Can be set to 0V which turns off the rail, or between 0.8V and 5.5V

  PMIC.vaux_config(3.3) # Set the Vaux rail to 3.3V

  # Read the current setting
  PMIC.vaux_config()
  3.3

If Vio is set to be in load switch mode, the Vaux rail will be limited to 3.45V

PMIC.vio_config(voltage, lsw=False)

Configures the FPGA IO rail voltage, either in LDO mode, or load switch mode
If no arguments are given, the current setting will be printed
- If Vio is configured as an LDO, the voltage setting will be returned as a float
- If Vio is configured as a load switch, the state will be returned as a string. Either LOAD_SWITCH_ON or LOAD_SWITCH_OFF
Can be set to 0V which turns off the rail, regardless of the mode
```
  PMIC.vio_config(0) # Shuts down the rail
```

Can be set between 0.8V or 3.45V in LDO mode

  PMIC.vio_config(3.3, lsw=False) # Set Vio to regulate 3.3V in LDO mode

  PMIC.vio_config(3.3) # The same as above. lsw=False by default

Vio can also be configured as a load switch. In this mode the Vaux voltage is passed through directly to Vio. In this case, Vaux must not exceed 3.45V

  PMIC.vio_config(True, lsw=True) # Turn on the load switch (pass Vaux to Vio)

  PMIC.vio_config(False, lsw=True) # Turn off the load switch

Improvements

Spotted something? Feel free to report any bugs you find, or suggest improvements. We’re always willing to improve things.

Submit an issue to our GitHub or contact us if something is unclear.

`FPGA_RESET`	The FPGA is currently held in reset
`FPGA_CONFIGURING`	The FPGA is configuring and loading the binary from the flash
`FPGA_RUNNING`	The FPGA is running

MicroPython on the S1 Module

Contents

Installing MicroPython on the S1 Module

First steps

Library Reference

machine – S1 module hardware library

Classes

Functions

Constants

machine.Pin – General purpose digital IO

Constructor

Functions

machine.ADC – Analog to digital convertor

Constructor

Functions

machine.RTC – Real time clock

Functions

machine.FPGA – FPGA controller

Functions

machine.Flash – Flash memory

Functions

machine.PMIC – Power management

Functions

Improvements

`machine` – S1 module hardware library

`machine.Pin` – General purpose digital IO

`machine.ADC` – Analog to digital convertor

`machine.RTC` – Real time clock

`machine.FPGA` – FPGA controller

`machine.Flash` – Flash memory

`machine.PMIC` – Power management
